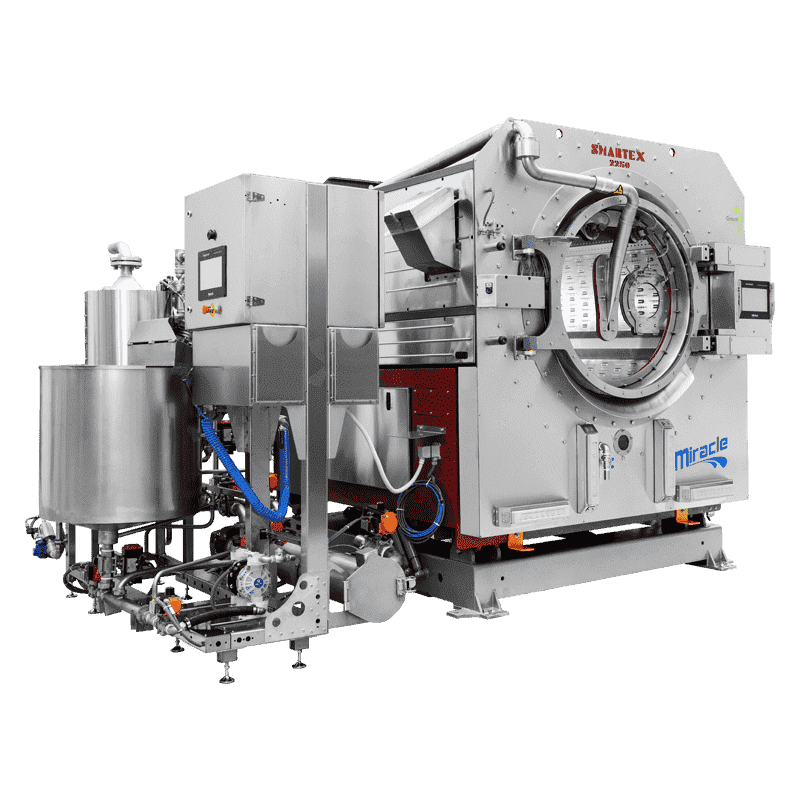

Smartex Miracle Garment Dyeing Machine

Smartex Miracle Garment Dyeing Machine

High Speed Garment Dyeing Machines

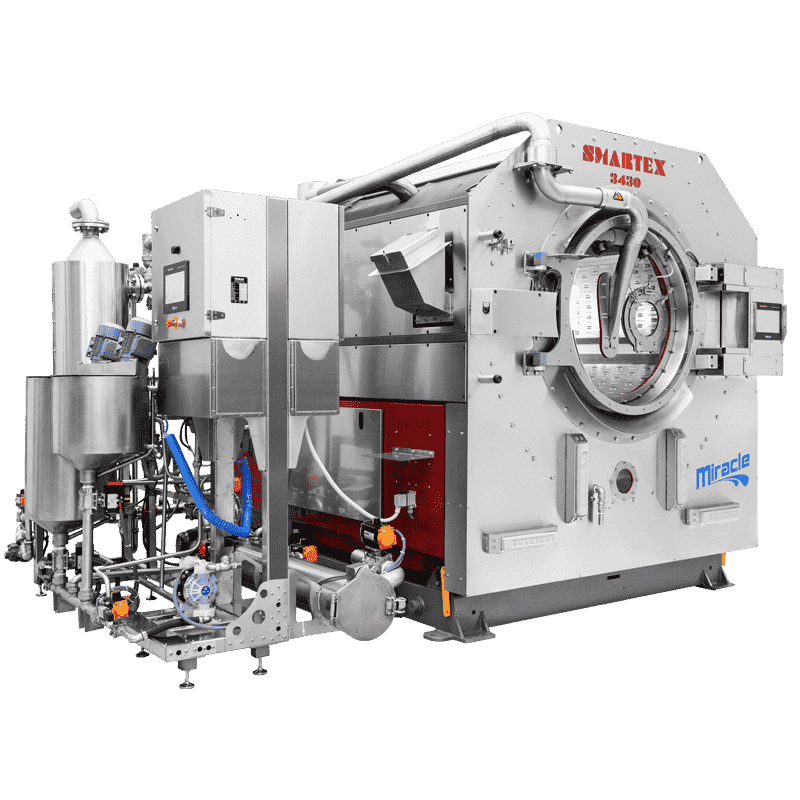

smartex miracle 3430 gd photo wb
1:1-1:2 Liquor Ratio
1:1-1:2 Liquor Ratio
Dry garments
400 G Extraction Force
400 G Extraction Force
20% less drying energy and time
SMART Balancing
SMART Balancing
Totally vibration free extraction eliminates the risk of damages.
70% Less Water, Chemicals, Steam and Waste Water
70% Less Water, Chemicals, Steam and Waste Water
40% Less Electric Energy
40% Less Electric Energy
205 Less Dyes
205 Less Dyes
20% Less Drying Energy and Time
20% Less Drying Energy and Time
SPIN DYE System
SPIN DYE System
High speed dyeing with Spin Dye Jet Spraying Technology Prevents all crease marks, abrassion and undesired mechanical effects. Sustainable dyeing technology.
Double Pump Circulation & Drain
Double Pump Circulation & Drain
Tolkar Smartex Laundry Machine Commercial Washer Denim Wash Stone Wash Green Wash Denim Washing Commercial Laundry Machine Textile Washer Ozone Wash
316 L Inner Drum
316 L Inner Drum
Professional Chemical / Dye Kitchen
Professional Chemical / Dye Kitchen
3 Large tanks, all with stirrer Continous leves measurement progrevvice dosing,main tank with indirect steam heating easy tank cleaning with filtering system Menual interference
Heat Exchanger
Heat Exchanger
Indirect Steam Heating
Backwards Tilting
Backwards Tilting
Easy and Automatic Loading (Optional)
Automatic Loading Door
Automatic Loading Door
(Optinal)
Scada System Condrols and Data Acquisition System
Scada System Condrols and Data Acquisition System
(Optional)
PLC Controlled
PLC Controlled
10" Touch Screen Panel
Reporting
Reporting
Reporting of consumptions and productivity

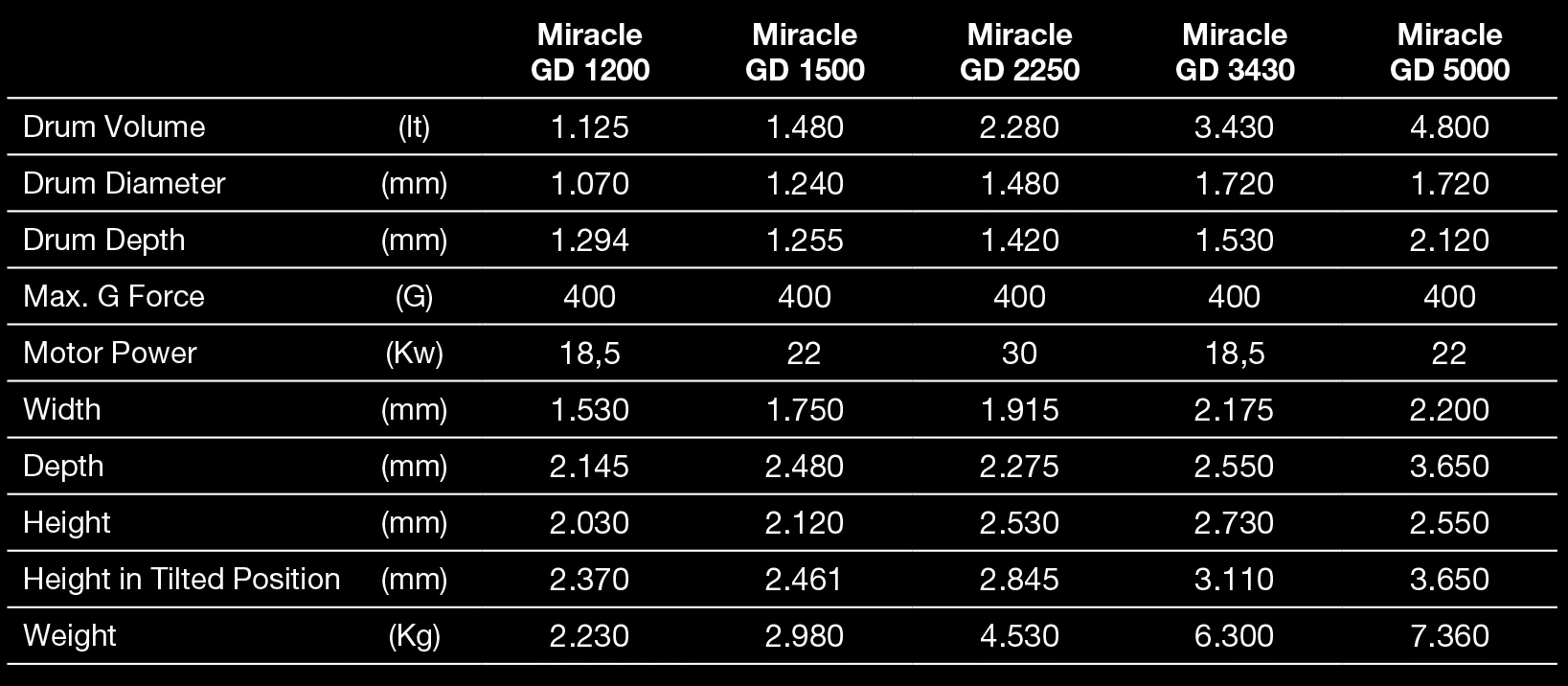

Technical Details

miracle gd technical table web

Tolkar reserves changing the technical specifications of the machines due to technological necessities without prior notice.
