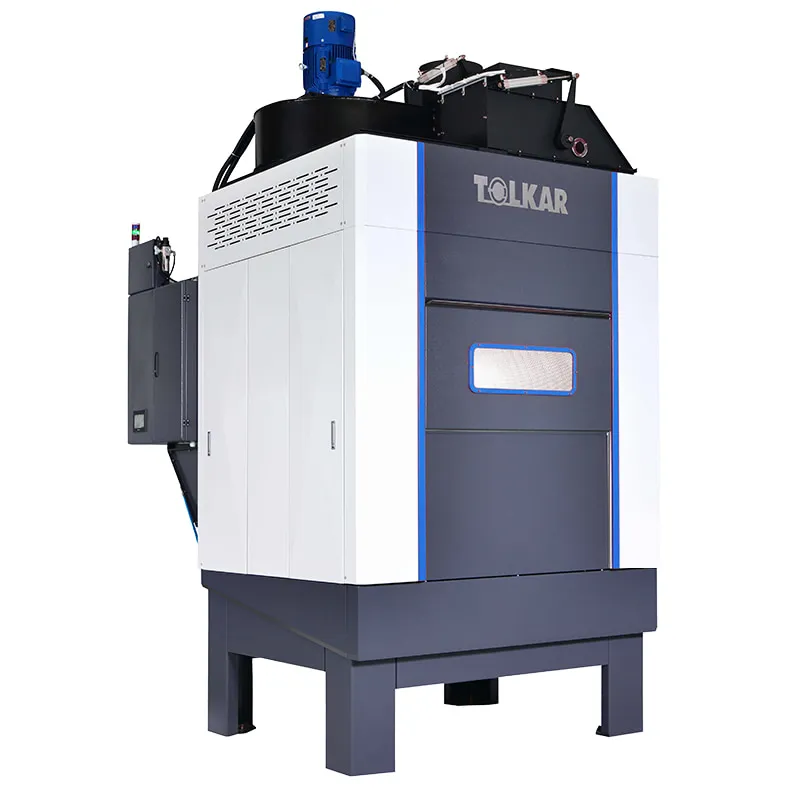

Tunnel Drying System
The system utilizes an indirect heating technology with a heat exchanger and a fully insulated body structure with a heat jacket. This design minimizes heat loss and enhances energy efficiency.
With its moisture-controlled drying feature, textiles are dried until they reach the optimal moisture level, preventing over-drying and providing energy savings.
For enhanced safety, the system is integrated with an automatic sprinkler fire suppression system, ensuring rapid response in case of a fire hazard.
The specially developed heat recovery system reuses waste heat, reducing energy consumption and offering an eco-friendly solution.
The automatic filter cleaning feature minimizes maintenance requirements and ensures continuous high performance.
The proportional Riello burner allows for precise temperature control and improved energy efficiency.
As an optional feature, the central lint collection system effectively collects lint during the drying process, maintaining the machine’s cleanliness and performance.
The TOLKAR Tunnel Drying System operates at a 10-bar steam working pressure, ensuring high-efficiency drying. Its powerful heating performance reduces processing time and optimizes energy consumption, making it an ideal solution for industrial textile operations.
| TPT 60 G | ||
| Heating Type | Gas | |
| Loading Capacity | (Kg) | 60 |
| Inner Drum Volume | 1.550 | |
| Motor Power | (Kw) | 1,5 |
| Fan Motor Power | (Kw) | 5,5 |
| Gas Thermal Power | (kcal) | 80.000 |
| Width | (mm) | 1.950 |
| Depth | (mm) | 2.285 |
| Height | (mm) | 4.130 |
| Weight | (Kg) | 2.500 |
| TPT 120 G | ||
| Heating Type | Gas | |
| Loading Capacity | (Kg) | 120 |
| Inner Drum Volume | 3.000 | |
| Motor Power | (Kw) | 2,2 |
| Fan Motor Power | (Kw) | 11 |
| Gas Thermal Power | (kcal) | 160.000 |
| Width | (mm) | 2.220 |
| Depth | (mm) | 2.850 |
| Height | (mm) | 4.190 |
| Weight | (Kg) | 3.400 |
| TPT 160 G | ||
| Heating Type | Gas | |
| Loading Capacity | (Kg) | 160 |
| Inner Drum Volume | 4.000 | |
| Motor Power | (Kw) | 3 |
| Fan Motor Power | (Kw) | 2x7,5 |
| Gas Thermal Power | (kcal) | 230.000 |
| Width | (mm) | 2.430 |
| Depth | (mm) | 3.010 |
| Height | (mm) | 4.690 |
| Weight | (Kg) | 4.100 |
| TPT 60 B | ||
| Heating Type | Steam | |
| Loading Capacity | (Kg) | 60 |
| Inner Drum Volume | 1.550 | |
| Motor Power | (Kw) | 1,5 |
| Fan Motor Power | (Kw) | 5,5 |
| Steam Consumption | (kg / h) | 190 |
| Width | (mm) | 1.950 |
| Depth | (mm) | 2.285 |
| Height | (mm) | 3.700 |
| Weight | (Kg) | 2.100 |
| TPT 120 B | ||
| Heating Type | Steam | |
| Loading Capacity | (Kg) | 120 |
| Inner Drum Volume | 3.000 | |
| Motor Power | (Kw) | 2,2 |
| Fan Motor Power | (Kw) | 11 |
| Steam Consumption | (kg / h) | 350 |
| Width | (mm) | 2.220 |
| Depth | (mm) | 2.850 |
| Height | (mm) | 3.800 |
| Weight | (Kg) | 3.000 |
| TPT 160 B | ||
| Heating Type | Steam | |
| Loading Capacity | (Kg) | 160 |
| Inner Drum Volume | 4.000 | |
| Motor Power | (Kw) | 3 |
| Fan Motor Power | (Kw) | 2x7,5 |
| Steam Consumption | (kg / h) | 470 |
| Width | (mm) | 2.430 |
| Depth | (mm) | 3.010 |
| Height | (mm) | 4.360 |
| Weight | (Kg) | 3.700 |
